Description

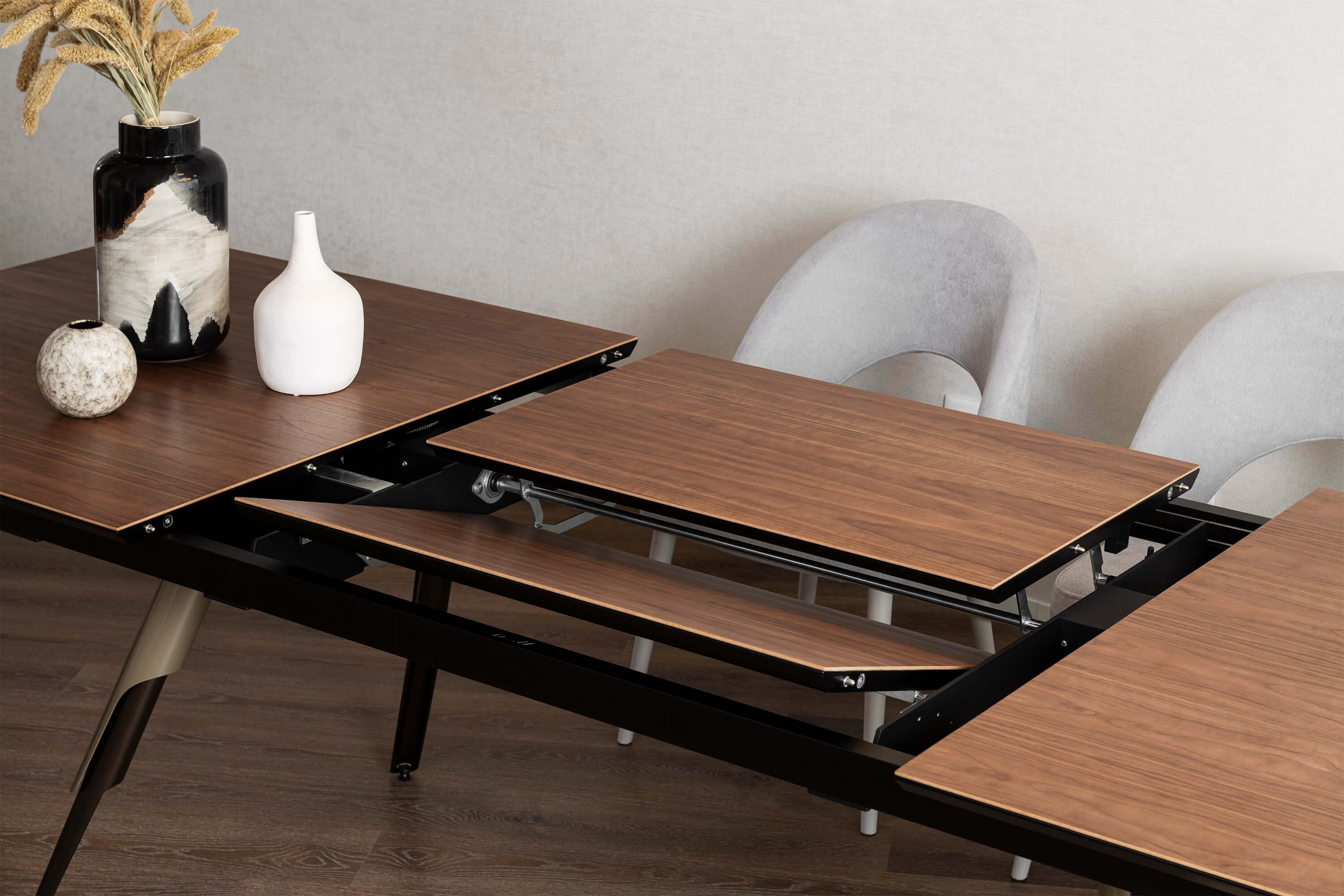

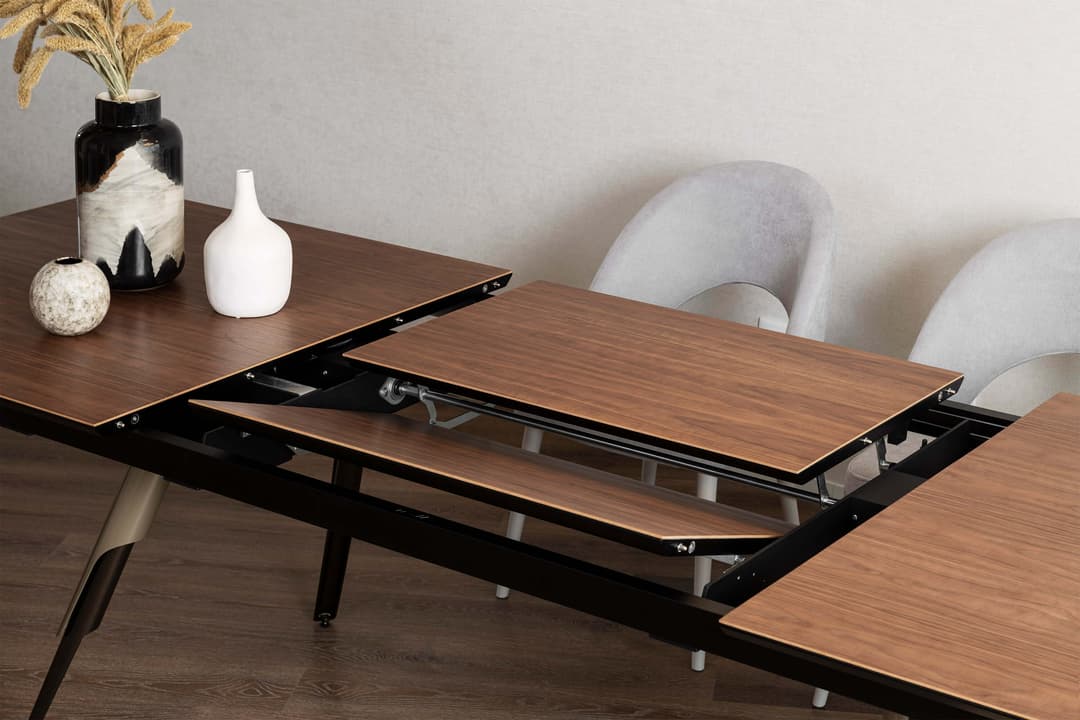

Extensible aluminum guide system, with a low-height construction, allows for a lightweight and attractive design capable of considerably increase the length of the table. Pulling the frame towards you, so that the feet with the casters slide, allowing the foldable leaves to be extracted in a natural and practical way.
TECHNICAL FEATURES
-
Aluminium and Steel
-
Standard colour: Natural or Black
RECOMMENDED TABLETOP WIDTH
-
Between 900 and 1000mm
(other dimensions upon request)
LOAD CAPACITY
-
Maximum frame load: 90kg
-
Maximum leaf weight: 15kg
MECHANISM
-
Opening system with front extension
-
Equipped with a brake combined with opening system
-
Simple and stable functionality ensuring a smooth movement through bearings
-
Front foot fixed to the frame and rear foot fixed to tabletop
-
Possibility for 1 or 2 foldables
| A | Frame Lenght |
| B | Frame Width |
| C | Max Leaf Lenght |
| D | Frame Opening |
| E | Fixing Coordinate |
| T1 | Inner Crossbar |
| X | Leaf Thickness |
| article code | A | B | C | D | E | X | Nº CROSSBAR |
|---|---|---|---|---|---|---|---|
| IN00-00000242 | 1115mm | 810mm | 1x700mm | 886mm | 270mm | 22-31mm | 1 |
| IN00-00000149 | 1705mm | 810mm | 1x700mm | 886mm | 417,5mm | 22-31mm | 1 |
| IN00-00000271 | 1705mm | 810mm | 2x500mm | 1230mm | 417,5mm | 22-31mm | 2 |
